Kitchen Outlets Back Online in Lake Mary, FL

Before & After

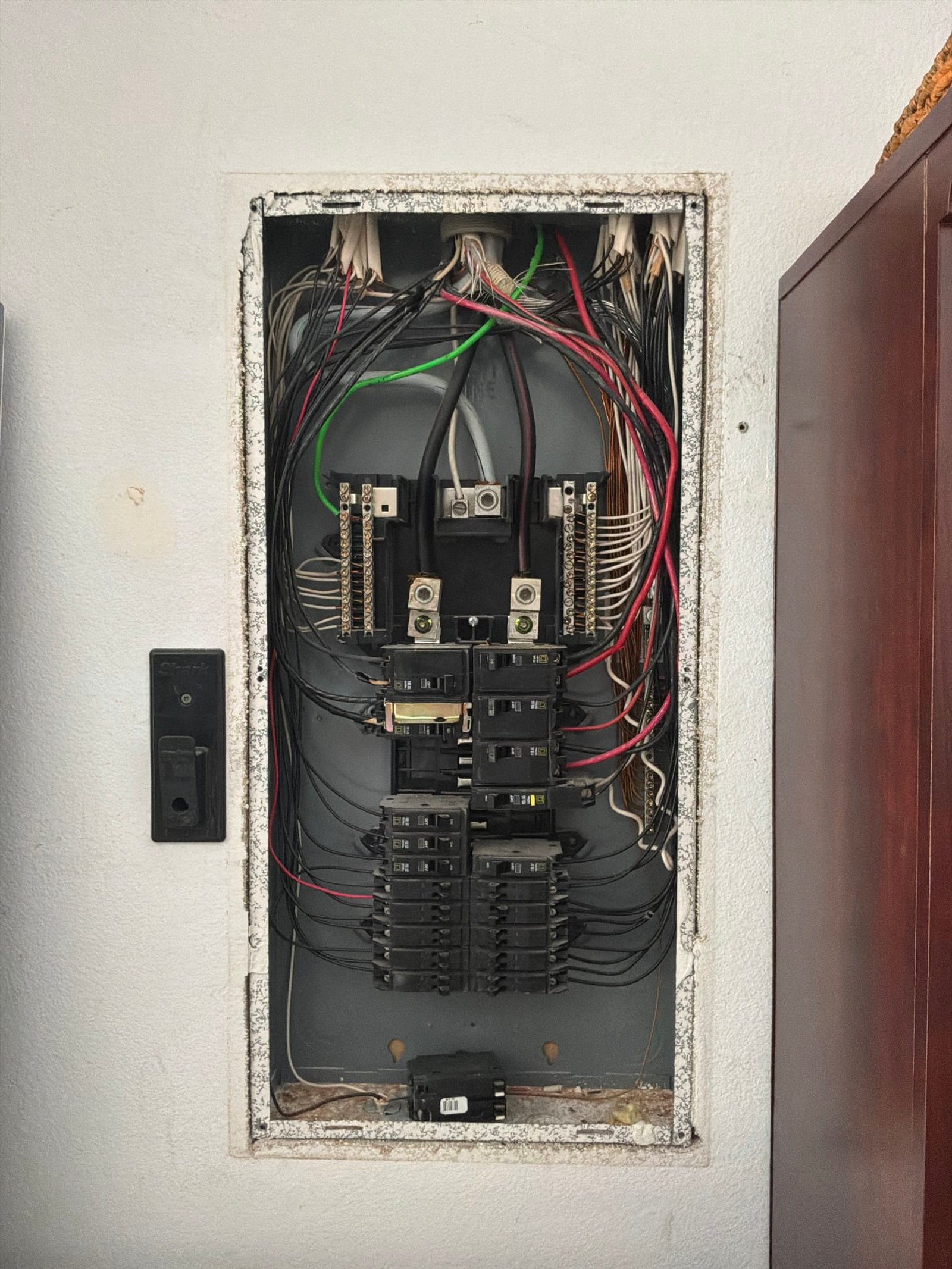

Before

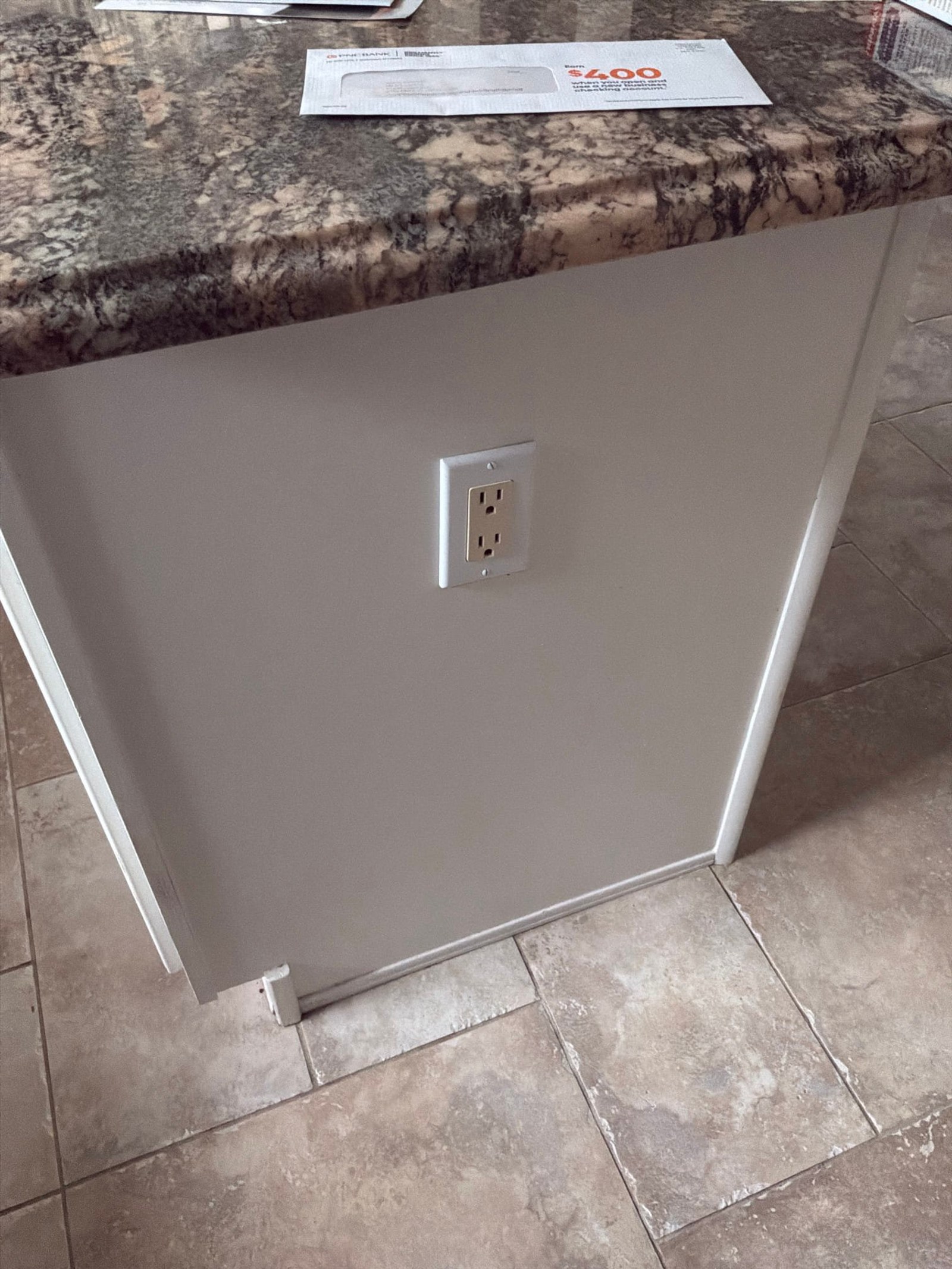

After

This Orlando panel upgrade case study walks through the real diagnosis, the fix, and the code details from a recent service call. A homeowner in Lake Mary, FL had four kitchen outlets that had been dead for months, an outdoor outlet in need of replacement, and a garage that needed a new dedicated plug. When our field team arrived, they restored all the outlets, added a new 20-amp garage circuit, upgraded the outdoor receptacle with a weatherproof assembly, and installed a PSP Vortex 120 kA whole-home surge protector at the Square D QO 150-amp panel. Along the way, the inspection turned up a few conditions worth addressing while the crew was already on-site.

The Problem

The homeowner had been working around a frustrating situation for quite some time.

“Four outlets in my kitchen have not been working for months. I also need the outdoor outlet replaced and a new plug put in the garage.”

That combination, especially the kitchen outlets being out for an extended period, pointed toward a tripped or faulty GFCI somewhere upstream. Our team came out to trace the cause and take care of all three requests in a single visit.

Investigation

The kitchen outlets were the first priority. In many homes, a single GFCI receptacle located at a counter or near the sink acts as a “master” that protects several additional outlets downstream. When that upstream device trips or fails, every outlet it feeds goes dark. That is exactly the pattern the homeowner described, and it is a very common finding in Florida homes.

While working through the job, the inspection photos documented several additional conditions at the panel worth noting.

Panel Conditions Worth Addressing

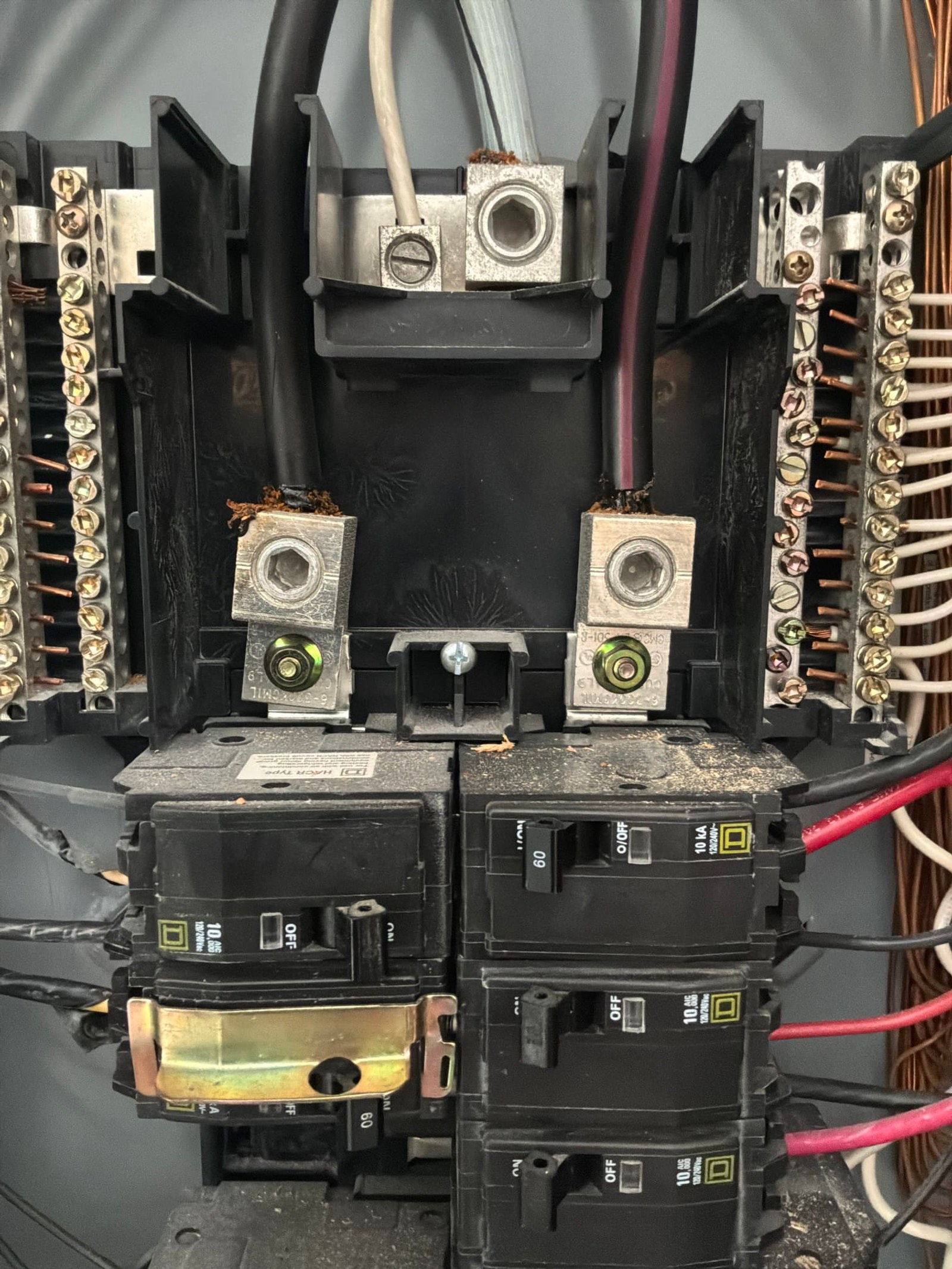

The photos showed corrosion on the terminations and the interior of the enclosure, along with evidence of water finding its way into the enclosure over time. Moisture intrusion is common in Central Florida’s climate, particularly in older or outdoor-adjacent panel locations. Left unaddressed, corrosion gradually increases resistance at the termination points, which shows up over time as heat discoloration around a termination, a condition visible on the copper lugs and torque terminal in the before photos.

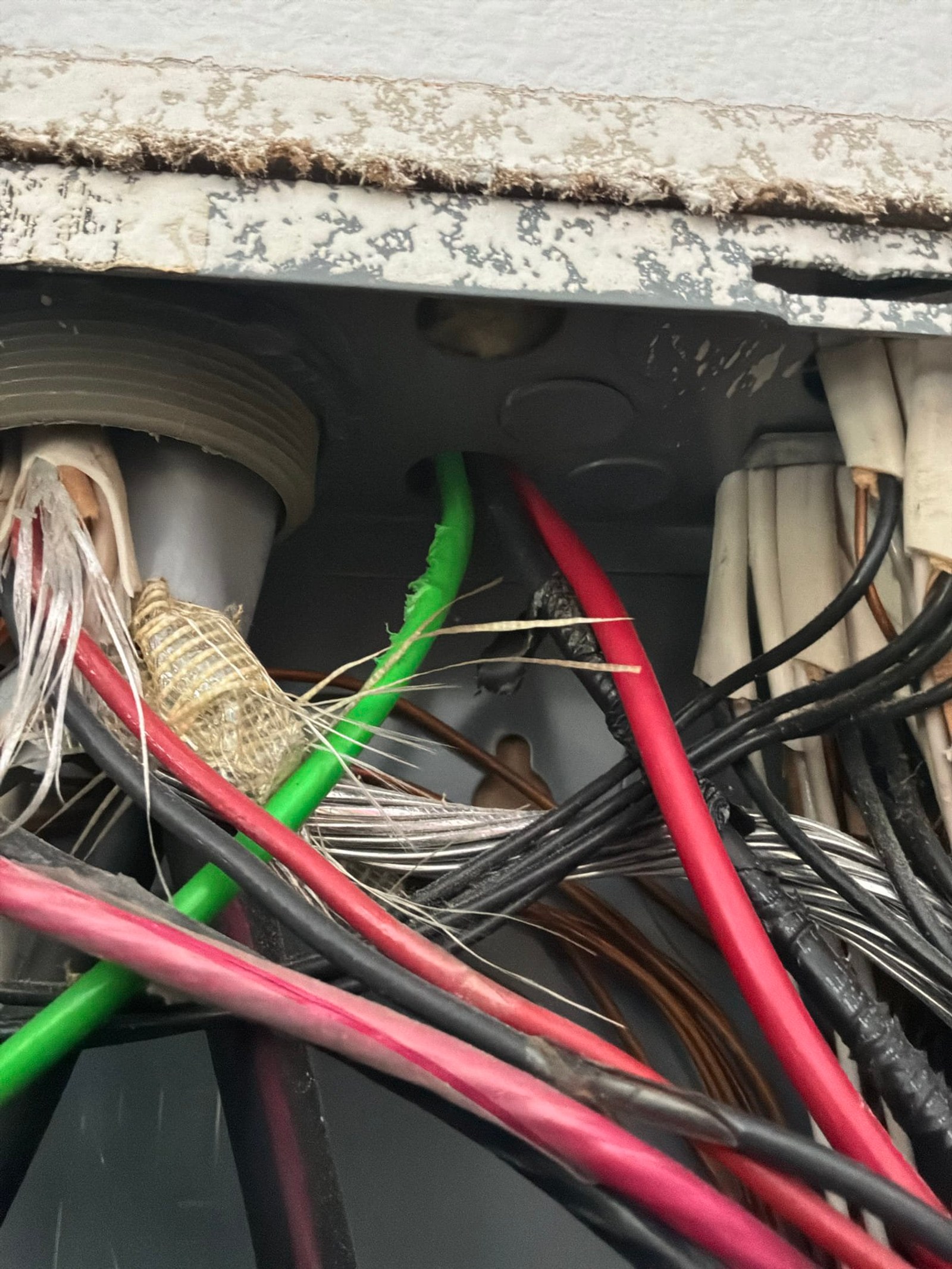

A loose lug was also visible in the inspection images. Lug connections are designed to hold conductors firmly under a specified torque. When a lug works loose, the contact area shrinks and resistance at that point climbs. The before photos also showed what appeared to be DIY workmanship, including a splice located outside of an enclosure, a configuration that predates current NEC requirements for protected splicing.

None of these conditions were present at every point in the panel: neutrals and grounds were separated properly, breakers were correctly sized, AFCI and GFCI protection were present in required areas, and the grounding system checked out. The open-knockout finding and the absence of surge protection were the two items flagged for immediate attention, and both were resolved during this visit.

What We Fixed

Our technician on-site worked through each item systematically.

For the kitchen, the team installed three Pass & Seymour 2097-TRW 20A 125V self-test, tamper-resistant GFCI receptacles. These devices meet NEC 210.8 for GFCI protection in kitchen areas and include a self-test function that monitors the device continuously, so the homeowner does not have to remember to press the test button each month. The result: four kitchen outlets that had been dark for months are fully functional again.

For the garage, the crew ran a new 20-amp circuit using 12/2 Romex, up to 10 feet in open area, and added a Square D QO120 single-pole 20-amp breaker at the panel to feed it. A second Pass & Seymour 2097-TRW GFCI receptacle serves this circuit, keeping it in line with NEC 210.8 requirements for garage locations.

Outdoors, the existing outlet was replaced with a new Pass & Seymour 2097-TRW GFCI receptacle mounted in a Bell 5320-0 weatherproof box, covered by an Intermatic WP3100C in-use bubble cover. This assembly keeps the outlet accessible in all weather while meeting the weatherproof enclosure requirements for outdoor receptacles.

Finally, a PSP Vortex 120 kA whole-home surge protector was installed at the Square D QO panel. This Type 2 device, installed per NEC 285.25, sits at the service entrance and intercepts transient voltage spikes before they reach any branch circuit in the home. A Leviton LL630 field-installable main lug set was also added to the panel as part of the service work.

Why This Orlando Panel Upgrade Matters for Homeowners

Kitchen outlets that stop working are easy to put off. The refrigerator still runs, the range still works, and life goes on. However, months without counter-level power in a kitchen means every morning routine, every meal prep, and every small appliance gets routed through fewer outlets than the space was designed to use. Restoring those four receptacles gives the household back the kitchen it was built to have.

The garage circuit is a similar quality-of-life upgrade. A dedicated 20-amp outlet means the homeowner can run a shop vac, a workbench tool, or a vehicle charger without pulling power from lighting or other circuits. That kind of reliable, purpose-built capacity is what makes a garage genuinely useful.

The whole-home surge protector is the kind of installation that the family will appreciate most during Central Florida’s active storm season. The PSP Vortex 120 kA device covers every circuit in the panel, so the refrigerator, the HVAC system, the computers, and the televisions all ride through voltage spikes without skipping a beat. Additionally, per NEC 230.67, surge protection at the service is now a required feature for new and updated dwelling-unit services, and this home is now aligned with that standard. With this in place, the household can go about daily life, through every summer storm and every grid fluctuation, knowing the electronics are covered.

Above all, the outdoor outlet upgrade means the homeowner has a code-compliant, weather-ready receptacle available whenever they need it, whether for landscaping tools, holiday lighting, or anything else that comes up outside.
