A homeowner in Orlando requested a comprehensive safety upgrade including smart smoke and carbon monoxide detectors throughout their home. Additionally, they needed GFCI protection in the kitchen and bathroom, along with some electrical repairs. Marc completed the full installation over two days, modernizing the home’s safety systems with interconnected smart detectors and adding whole-house surge protection.
The Problem
The homeowner contacted Thomas Edison Electric needing multiple safety improvements completed within two days to meet Section 8 housing requirements. They specifically requested:
“Smoke detector in every bedroom, GFCI plug in bathroom and kitchen, carbon monoxide detector in unit.”
In addition, the home needed some electrical repairs including outlet and switch replacements.
Investigation
Marc found an existing electrical system that needed updates to meet current safety standards. Furthermore, the home had older smoke detection that needed replacement with modern interconnected units. The electrical panel could accommodate new circuit breakers for the safety systems. However, the existing surge protection was inadequate for today’s sensitive electronics.
The kitchen and bathroom areas lacked GFCI protection, which is now required by current electrical codes. Additionally, some existing outlets and switches showed wear and needed replacement.
What We Fixed
Smart Smoke and Carbon Monoxide Detection

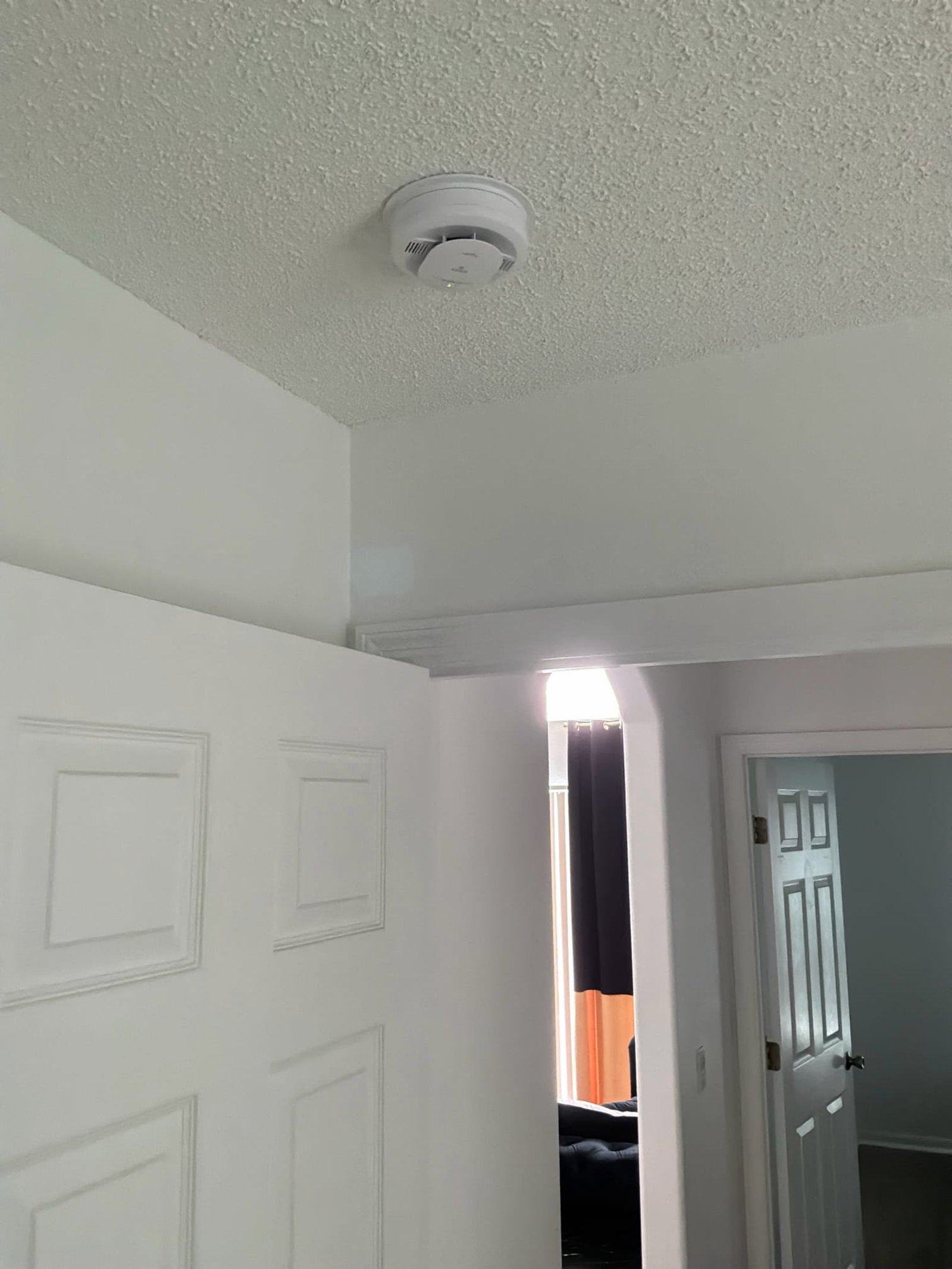

To start, our field team installed five smart smoke and carbon monoxide combination detectors throughout the home. These Kidde units feature 10-year sealed lithium batteries, 120V hardwired power, and smart connectivity for remote monitoring. The interconnected system ensures that when one detector activates, all units sound simultaneously. This smoke detector installation in Orlando brought the home into full code compliance.
Whole-House Surge Protection and Panel Upgrades

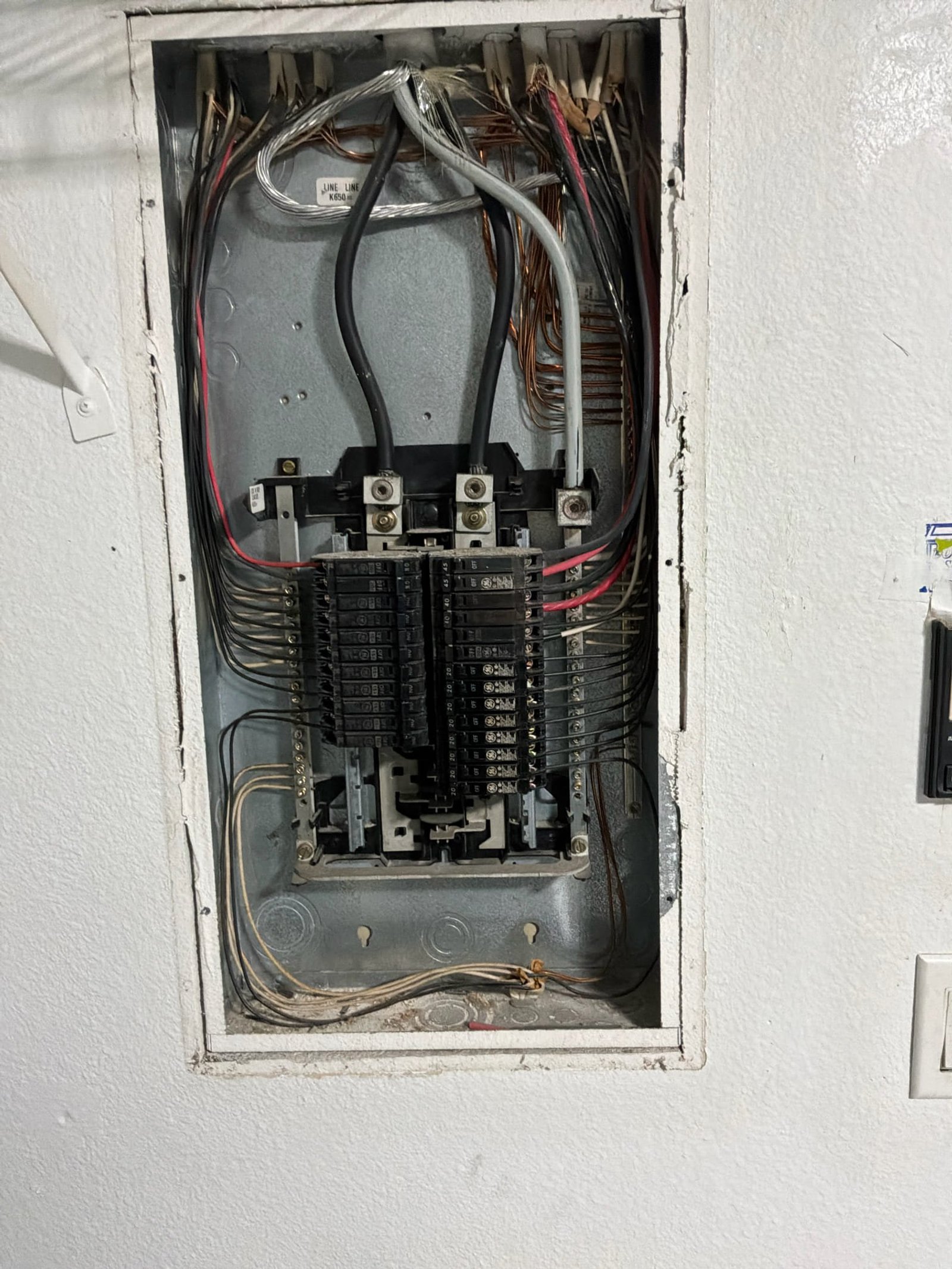

Next, he added a PSP Vortex whole-house surge protector to the electrical panel. This 120 kA unit protects the entire home’s electrical system from power surges. The installation required new Square D HomeLine breakers including a 15-amp single pole and a 40-amp double pole unit.
GFCI Protection and Electrical Repairs
For the GFCI protection, our field team installed tamper-resistant receptacles in the kitchen and bathroom areas. He also replaced a worn single receptacle and installed a new decorator-style rocker switch. The work included a GE THQP 30-amp double pole breaker for additional circuit capacity.
Finally, our field team completed a cord cap installation to repair an existing electrical cord. This ensured all connections met current safety standards.
Why This Matters for Homeowners
Smart smoke and carbon monoxide detectors represent a significant safety advancement over traditional units. The 10-year sealed batteries eliminate the midnight chirping from dying batteries. Meanwhile, the smart connectivity allows homeowners to receive alerts on their phones even when away from home. Moreover, the interconnected system provides faster notification throughout the home.
Whole-house surge protection has become essential as homes contain more sensitive electronics than ever before. A quality surge protector like the PSP Vortex safeguards everything from smart TVs to HVAC systems. In fact, whole-house surge protection in Orlando is especially critical due to Florida’s frequent lightning activity. As a result, GFCI protection in wet areas reduces shock risks significantly. This is especially important in Florida’s humid climate where moisture can affect electrical connections.
Code Compliance Cited in This Job
Every fix above maps to a specific section of NEC 2023. Each card links to NFPA’s public NEC index.
GFCI Protection Requirements
Current code requires GFCI protection for receptacles in kitchens, bathrooms, and other wet locations. This installation brought the home into compliance with these important safety requirements. NFPA reference ›
Arc-Fault Circuit Interrupter Protection
While not part of this specific job, the new breakers installed are compatible with AFCI requirements that apply to bedroom and living area circuits in modern installations. NFPA reference ›
Fire Alarm System Power Sources
The hardwired smoke detectors with battery backup meet NEC requirements for reliable power sources in residential fire alarm systems, providing dual power source protection. NFPA reference ›
Surge Protective Device Installation
The PSP Vortex whole-house surge protector installation follows NEC guidelines for proper surge protection device connection and grounding at the service panel. NFPA reference ›
Common Questions
Questions homeowners ask after seeing this kind of work.
How often should smoke detectors be replaced in Florida homes?
Smoke detectors should be replaced every 10 years, regardless of type. However, the new smart detectors with 10-year sealed batteries eliminate the need for battery changes during their lifespan. In Florida’s humid climate, it’s especially important to test detectors monthly to ensure they’re functioning properly. If you’re unsure about your detector ages, schedule an electrical safety inspection to verify they’re providing adequate protection.
Do I need both smoke and carbon monoxide detection in every room?
Florida building code requires smoke detectors in every bedroom and hallway leading to bedrooms, plus one on each level of the home. Carbon monoxide detectors are required near sleeping areas if you have fuel-burning appliances or an attached garage. The combination units we installed provide both types of protection in one device. Not sure what your home requires? Our team can assess your specific needs during a safety consultation.
Why do I need a whole-house surge protector if I have power strips?
Power strips only protect the devices plugged into them, while whole-house surge protectors shield your entire electrical system. This includes hardwired appliances like HVAC systems, water heaters, and built-in electronics. Florida experiences frequent lightning activity, making comprehensive surge protection especially valuable. Additionally, many smaller surges come from within your own home when large motors start up. If you want complete protection for your investment, book a surge protection consultation to learn about your options.
How often should I have my electrical system inspected?
We recommend yearly electrical inspections for most homes, with more frequent checks for older homes or those that have weathered recent storms. Annual inspections catch small issues before they become larger problems and help ensure your safety systems are functioning properly. Homes with updated smart detection systems like this one still benefit from professional verification that everything is working as designed. Schedule your annual inspection to maintain your home’s electrical safety.
Can I connect my smart smoke detectors to my existing home automation system?
Many modern smart smoke detectors can integrate with popular home automation platforms. This allows you to receive notifications on your phone and incorporate them into whole-home safety routines. The specific connectivity options depend on your existing system and the detector model. Our technicians can help determine compatibility and assist with setup during installation. If you’re interested in smart home integration, contact our team to discuss the best approach for your setup.
